Recognized as a leader in MgO building technology TRITON® Backer Board marks a significant advancement in tile installation, offering a superior, lightweight alternative to traditional cement and gypsum boards.
Our Backer Board is a patented, high-performance magnesium oxide substrate that serves as a direct replacement for cement backer board and gypsum underlayment across floors, walls, and ceilings in both wet and non-wet applications. It scores and snaps with ease, reducing installation time on every job.
Third-party certified and compliant with ANSI, ASTM, and ICC-ES standards. Free of crystalline silica and VOCs. Built to code, built to last.
Weight/Unit:
27 lbs
SKU:
TBK05035B1
Weight/Unit:
57.6 lbs
SKU:
TBD05048B
Weight/Unit:
59 lbs (need real data)
SKU:
TBK05049B
Weight/Unit:
60 lbs
SKU:
TBD050410B
Weight/Unit:
15 lbs
SKU:
TBK02535B1
Weight/Unit:
32 lbs
SKU:
TBD02548B
Weight/Unit:
10 lbs
SKU:
TBK01235D
Weight/Unit:
21.3 lbs
SKU:
TBD01248D
* = Speciality orders only, reach out to a sales rep for more information.
Weight/Unit:
26.6 lbs
SKU:
TBD012410D
* = Speciality orders only, reach out to a sales rep for more information.
|
PROPERTY
|
TEST METHOD
|

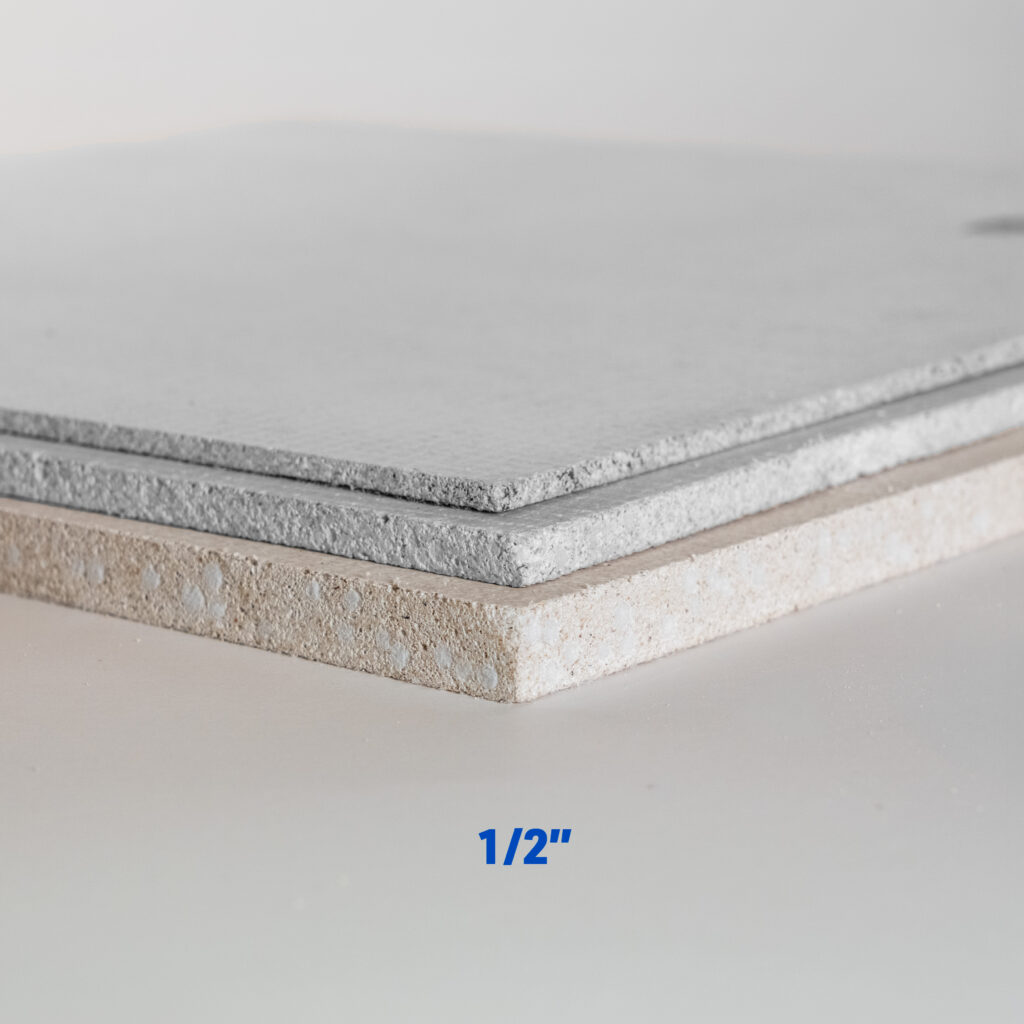

1/2" (12MM)
|

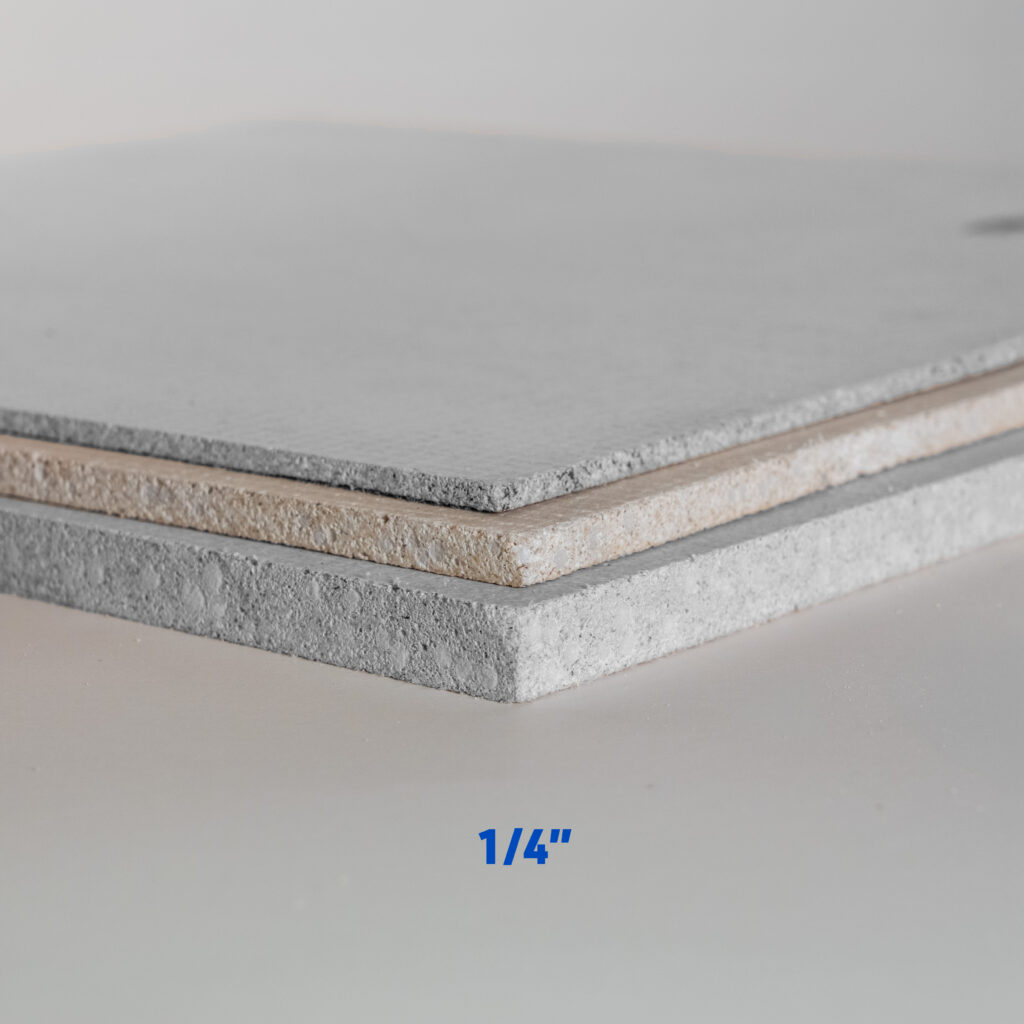

1/4" (6MM)
|

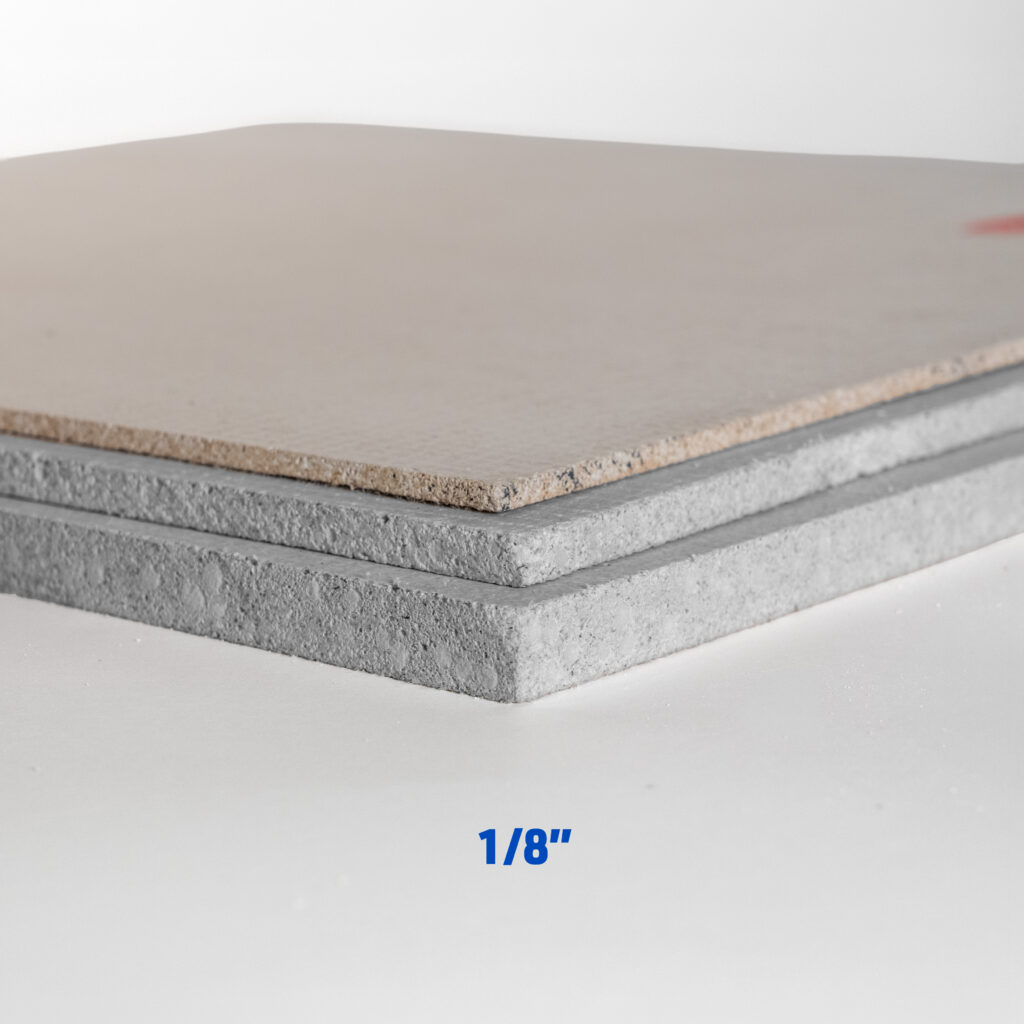

1/8" (3MM)
|
|---|---|---|---|---|
|
Thickness
|
----
|
.45 in.
|
.25 in.
|
.13 in.
|
|
Density (Specific Gravity)
|
----
|
0.75
|
0.85
|
0.95
|
|
Weight
|
----
|
1.8 lbs/ft²
|
1.0 lbs/ft²
|
0.70 lbs/ft²
|
|
Flexural Strength
|
ASTM C 1185
|
>1,000 psi
|
>2,000 psi
|
>2,600 psi
|
|
Mold Resistance
|
ASTM G 21
|
0
|
0
|
0
|
|
Surface Burning Characteristics
|
ASTM E 84
|
0/0
|
0/0
|
0/0
|

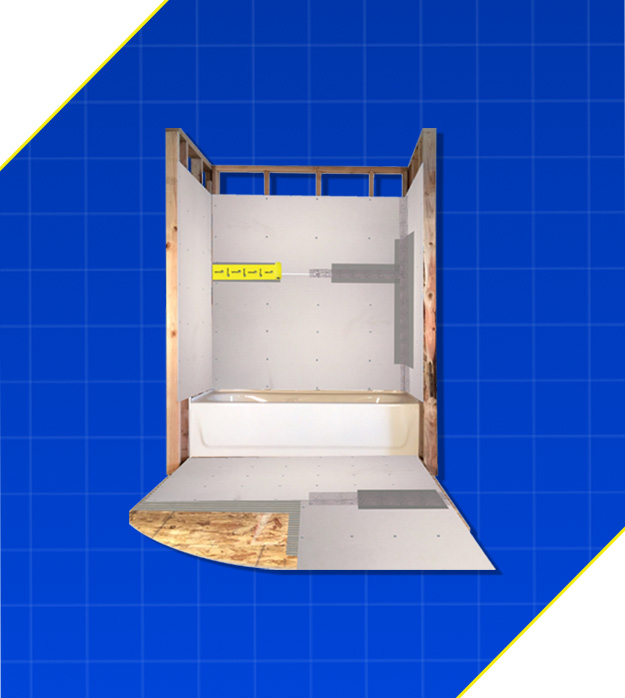

Used as a tile backer, Triton MgO panels go up faster, with fewer steps, and fit entirely within your crew’s current skill set. The boards score and snap cleanly with a standard utility knife, so there are no wet saws or special blades required. If they’ve been installing cement backer board, they’re going to love working with Triton MgO.
